The Consolidated XP4Y Corregidor was Cancelled for the Catalina

The Consolidated XP4Y Corregidor was an ambitious and innovative project that started in the late 30s. This American prototype flying boat was designed for long-range maritime patrol duties, showcasing advanced engineering and design principles of its time.



The Consolidated Aircraft Corporation embarked on the XP4Y Corregidor project to meet a 1938 United States Navy requirement for a new maritime patrol aircraft. Seeking to create a versatile and robust flying boat, Consolidated aimed to fulfil various roles from reconnaissance to anti-submarine warfare.

Read More: Did the An-26 Improve Soviet Transport for Both Military and Civilians?

They chose the name Corregidor to honour the strategic island in the Philippines, reflecting the aircraft’s intended role in Pacific operations.

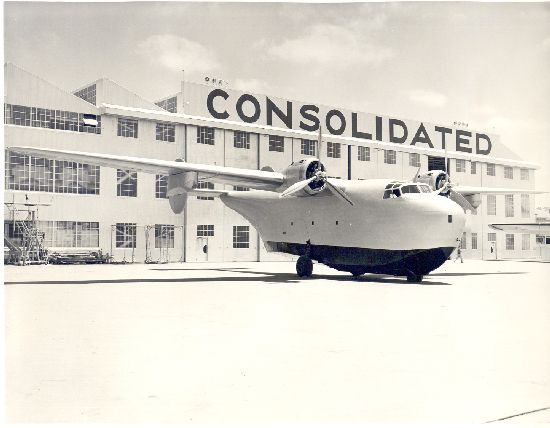

A photo of the prototype in July 1939.
A photo of the prototype in July 1939.

Consolidated’s design team led by Isaac M. Laddon, an influential aircraft designer, approached the XP4Y Corregidor with innovative ideas. They aimed to integrate both aerodynamics and hydrodynamics in a unique configuration.

The high-mounted cantilever wing, free of external bracing, gave the aircraft a sleek and efficient profile. This design reduced aerodynamic drag, enhancing overall performance and fuel efficiency.

The fuselage featured a streamlined hull, carefully shaped to minimize hydrodynamic drag during water operations. This hull design allowed for smoother takeoffs and landings on water, which was critical for a flying boat.

The hull’s structure used all-metal construction, moving away from the fabric-covered designs that were common at the time. This choice increased the aircraft’s durability and strength, making it more suitable for the harsh conditions of maritime patrol.


Consolidated’s engineers also focused on the aircraft’s size and proportions to balance performance and operational capability. The XP4Y Corregidor had a wingspan of 124 feet and an overall length of 83 feet, providing a stable platform for long-range missions.

The substantial size allowed for the integration of large fuel tanks, giving the aircraft an impressive range of over 3,000 miles. This range ensured the XP4Y could undertake extended patrol missions without frequent refuelling stops.

The XP4Y Corregidor’s wing design incorporated advanced aerodynamic features. Engineers included Fowler flaps, which extended the wing surface area to improve lift during takeoff and landing.

These flaps enhanced the aircraft’s short takeoff and landing capabilities, essential for operations from rough sea surfaces or confined water bodies. Additionally, the wing housed the aircraft’s two Wright R-3350 Duplex-Cyclone radial engines in streamlined nacelles, optimizing aerodynamics and improving performance.

The Corregidor had a bigger wingspan than the B-17.
The Corregidor had a bigger wingspan than the B-17.

Operational Flexibility

Consolidated paid special attention to the aircraft’s operational flexibility. They designed the XP4Y to accommodate various mission-specific equipment and armaments. The aircraft included provisions for multiple machine gun turrets, strategically placed for maximum defensive coverage.

Engineers designed compartments and hardpoints for carrying bombs, depth charges, and torpedoes, making the XP4Y a formidable anti-submarine and surface attack platform.

Internally, the XP4Y Corregidor featured advanced systems for navigation and communication. Consolidated integrated state-of-the-art radio equipment, allowing for long-range communication essential for coordinating with naval forces and other aircraft.

The design also included sophisticated navigational aids, such as an early form of radar, which enhanced the aircraft’s ability to detect and track enemy vessels and submarines.

During the development phase, the XP4Y Corregidor faced numerous challenges. World War II’s outbreak accelerated the need for immediate and effective aircraft solutions, leading to shifting priorities within the United States Navy.

Read More The F-86 flew with 30 Different Air Forces

Despite its promising design, the XP4Y’s development encountered delays and resource allocation issues, which ultimately led to its cancellation in favour of more rapidly deployable aircraft.

Powerplant and Performance

Consolidated Aircraft Corporation designed the XP4Y Corregidor to harness the power and efficiency of the Wright R-3350 Duplex-Cyclone radial engines. Each engine produced 2,300 horsepower, making them among the most powerful radial engines available in the early 1940s.

These engines provided the necessary thrust to meet the demanding performance requirements for long-range maritime patrol missions.

Although the flying boat had powerful engines for the time, top speed was still only  247 mph.
Although the flying boat had powerful engines for the time, its top speed was still only 247 mph.

The placement of the engines played a crucial role in optimizing the aircraft’s performance. Consolidated engineers mounted the Wright R-3350 engines in streamlined nacelles on the wings. This design choice minimized drag and contributed to better aerodynamics, enhancing the aircraft’s overall efficiency.

The streamlined nacelles also facilitated better cooling for the engines, ensuring reliable performance during extended missions over vast oceanic expanses.

The XP4Y Corregidor’s propulsion system provided impressive speed and range capabilities. With the powerful Wright R-3350 engines, the aircraft achieved a maximum speed of approximately 230 miles per hour.

This speed allowed the XP4Y to cover large areas quickly during patrol missions, increasing its operational effectiveness. The aircraft’s cruising speed, around 175 miles per hour, balanced fuel efficiency with mission endurance, enabling it to stay airborne for extended periods.

The engineers at Consolidated focused on ensuring the XP4Y Corregidor could operate at various altitudes. The aircraft achieved a service ceiling of 25,000 feet, providing the flexibility to perform missions at different altitudes depending on the operational requirements.

This high-altitude capability was particularly advantageous for reconnaissance missions, allowing the aircraft to survey vast areas while remaining out of range of enemy anti-aircraft defences.

Seaplanes were a lot more commonplace in the 30s and 40s than they are today!
Seaplanes were a lot more commonplace in the 30s and 40s than they are today!

The range of the XP4Y Corregidor was one of its standout features. With a fuel capacity optimised for long-distance flights, the aircraft boasted a range of over 3,000 miles. This range allowed the XP4Y to undertake long-range patrol missions without the need for frequent refuelling stops, essential for covering the expansive Pacific theatre.

The aircraft’s endurance made it a valuable asset for extended operations, including anti-submarine warfare and search-and-rescue missions.

Consolidated also ensured the XP4Y Corregidor had robust takeoff and landing capabilities, critical for a flying boat designed to operate from water surfaces. The engineers incorporated innovative features such as Fowler flaps, which extended the wing surface area and improved lift during takeoff and landing.

These flaps enabled the aircraft to perform short takeoffs and landings, even from rough or confined water bodies. The design minimized the distance required for takeoff and landing, enhancing operational flexibility.

In addition to performance, reliability played a significant role in the XP4Y Corregidor’s design. The Wright R-3350 engines, known for their durability, ensured the aircraft could withstand the rigours of maritime patrol missions.

The engines’ reliability was crucial for long flights over open water, where engine failure could have catastrophic consequences. Consolidated’s focus on robust engineering and high-quality materials contributed to the XP4Y’s dependability.

The combination of powerful engines, aerodynamic efficiency, and advanced features resulted in an aircraft capable of fulfilling its intended role with distinction.

Although the XP4Y Corregidor ultimately did not enter active service, its powerplant and performance characteristics demonstrated the potential for future advancements in maritime patrol aviation.

A production order was placed for 200.
A production order was placed for 200.

Armament and Equipment

he Consolidated XP4Y Corregidor was designed to be a formidable maritime patrol aircraft, equipped with an extensive array of armaments and cutting-edge reconnaissance equipment. Consolidated Aircraft Corporation aimed to create a versatile platform capable of engaging enemy submarines, surface vessels, and providing effective reconnaissance.

To meet the diverse operational requirements, Consolidated designed the XP4Y Corregidor with multiple defensive and offensive armaments. The aircraft featured strategically placed machine gun turrets for comprehensive defensive coverage.

A nose turret housed a pair of .50 calibre machine guns, providing forward defensive firepower. Additionally, a dorsal turret mounted on the aircraft’s top provided 360-degree coverage, enabling the gunner to engage threats from any direction.

A tail turret equipped with twin .50 calibre machine guns ensured rear protection, making the XP4Y a heavily armed flying boat capable of defending itself against enemy fighters.

Consolidated equipped the XP4Y Corregidor with an internal bomb bay designed to carry a versatile payload. This bomb bay accommodated various munitions, including bombs, depth charges, and torpedoes.

Engineers designed the bomb bay with flexibility in mind, allowing the aircraft to switch between different types of ordnance depending on the mission requirements. For anti-submarine warfare, the aircraft could deploy depth charges capable of sinking enemy submarines.

When tasked with surface attack missions, the XP4Y could carry torpedoes to engage and destroy enemy ships. The aircraft’s payload capacity ensured it could undertake a wide range of offensive operations, making it a versatile asset for maritime patrol duties.

As it was intended for military service the Corregidor had defensive armament.
As it was intended for military service the Corregidor had defensive armament.

In addition to its armament, the XP4Y Corregidor featured advanced reconnaissance and navigation equipment. Consolidated integrated state-of-the-art radio communication systems, essential for long-range missions.

These radio systems enabled the XP4Y to maintain contact with naval forces, other aircraft, and ground stations over vast distances. The reliable communication equipment ensured effective coordination during patrol missions, allowing the XP4Y to relay critical information about enemy movements and positions.

The XP4Y Corregidor also boasted sophisticated navigational aids, critical for long-range patrol operations over open ocean. Engineers included an advanced radio direction finder, which helped the crew determine their position relative to known radio beacons.

This navigation system was essential for accurate navigation in areas where visual landmarks were scarce. Furthermore, the aircraft featured a gyrocompass, providing precise heading information and improving the accuracy of long-distance navigation.

Consolidated recognized the importance of early warning and detection capabilities for a maritime patrol aircraft. To address this, the XP4Y Corregidor was equipped with an early form of radar. This radar system allowed the aircraft to detect surface vessels and submarines, even in poor visibility conditions such as fog or darkness.

The radar’s ability to detect and track enemy vessels from a distance provided the XP4Y with a significant tactical advantage, enhancing its effectiveness in reconnaissance and anti-submarine warfare roles.

The aircraft’s crew also benefited from an array of onboard equipment designed to improve mission effectiveness and crew efficiency. The XP4Y Corregidor featured ergonomic workstations for the pilot, co-pilot, navigator, and radio operator.

These workstations were equipped with the necessary instruments and controls, ensuring the crew could perform their tasks efficiently. The aircraft’s spacious interior allowed for comfortable long-duration missions, with provisions for rest areas and storage of essential supplies.

Consolidated ensured the XP4Y Corregidor had robust defensive measures to protect the crew and critical systems. The aircraft incorporated armour plating in key areas, such as the cockpit and engine nacelles, providing protection against enemy fire.

Additionally, the fuel tanks were designed to be self-sealing, reducing the risk of fire in the event of battle damage. These protective features enhanced the survivability of the XP4Y in combat situations, increasing the likelihood of mission success.

Operational History

The operational history of the Consolidated XP4Y Corregidor is a tale of ambition, innovation, and the rapid pace of technological advancement during World War II. Although the aircraft never saw active service, its development and the circumstances surrounding it provide a fascinating insight into the era’s aviation challenges and priorities.

In the late 1930s, the United States Navy issued a requirement for a new long-range maritime patrol aircraft. Consolidated Aircraft Corporation responded with the XP4Y Corregidor, envisioning a versatile flying boat capable of extended patrol missions over the vast expanses of the Pacific Ocean.

The project began in earnest, with Consolidated dedicating significant resources to design and build the prototype.

Consolidated completed the XP4Y prototype by 1939, and the aircraft quickly garnered attention for its advanced features and capabilities. The United States Navy saw potential in the XP4Y, which offered a combination of long range, robust armament, and sophisticated reconnaissance equipment.

The aircraft’s ability to perform anti-submarine warfare and surface attack missions made it a promising candidate for the Navy’s expanding fleet.

The XP4Y performed admirably in testing.
The XP4Y performed admirably in testing.

Testing of the XP4Y Corregidor began soon after its completion. Consequently, the aircraft underwent rigorous trials to evaluate its performance, handling, and operational capabilities. These tests took place at various locations, including the Naval Air Station in San Diego, where the aircraft’s takeoff and landing characteristics on water and land were closely examined.

The XP4Y’s powerful Wright R-3350 engines, aerodynamic design, and advanced features subsequently impressed Navy evaluators, who noted its potential to significantly enhance maritime patrol operations.

However, as World War II escalated, the priorities of the United States Navy shifted rapidly. The urgent need for effective and readily deployable aircraft led to a re-evaluation of ongoing projects, including the XP4Y Corregidor. While the XP4Y showcased promising capabilities, the Navy, meanwhile, faced pressing demands for immediate solutions to counter the growing threat posed by enemy submarines and surface vessels.

During this period, the Navy increasingly relied on the Consolidated PBY Catalina, an established and proven flying boat. The PBY Catalina had already demonstrated its effectiveness in various roles, including reconnaissance, anti-submarine warfare, and search-and-rescue missions.

Given its proven track record and existing production lines, the Catalina thus became the preferred choice for rapid deployment.

The XP4Y Corregidor, despite its advanced design, consequently found itself competing against the urgency of wartime production needs. The Navy decided to prioritize aircraft that could be produced and fielded quickly, which led to the cancellation of the XP4Y project.

Consolidated then shifted its focus to meeting the immediate demands of the war effort, and the XP4Y prototype remained the only one of its kind.

Delays in preparation of the prototype and the shortage of Wright Duplex Cyclone engines (which were required to power the B-29 Superfortress) led to the production order being cancelled
Delays in preparation of the prototype and the shortage of Wright Duplex Cyclone engines, which were required to power the B-29 Superfortress, led to the production order being cancelled

Although the XP4Y Corregidor never entered active service, its development nevertheless provided valuable insights and technological advancements that influenced future aircraft designs.

The lessons learned from the XP4Y’s innovative features, such as its high-mounted cantilever wing, streamlined hull, and advanced reconnaissance equipment, consequently contributed to the evolution of maritime patrol aircraft. Engineers and designers applied these insights to subsequent projects, thereby enhancing the capabilities of future generations of flying boats and patrol aircraft.

Read More The P-47 had some of the Heaviest Armament of the War

In the broader context of aviation history, the XP4Y Corregidor represents a critical phase of experimentation and progress. The aircraft’s design reflected the cutting-edge technology and ambitious engineering of the time, highlighting the rapid pace of innovation driven by the demands of global conflict.

The XP4Y’s story underscores the dynamic nature of wartime aviation development, where promising projects could be overtaken by the urgent need for practical and immediate solutions.
