The Kamov Ka-22 “Vintokryl,” a remarkable blend of helicopter and aeroplane technology, emerged in the late 1950s as a pioneering concept in aviation. .
Contents
Innovation?
The development of the Kamov Ka-22 began in the Soviet Union during the Cold War, a period marked by rapid technological advancements in aeronautics. The Ka-22 was envisioned to fulfil a range of military and civilian roles, leveraging its unique design to offer capabilities not available in traditional aircraft of the era.

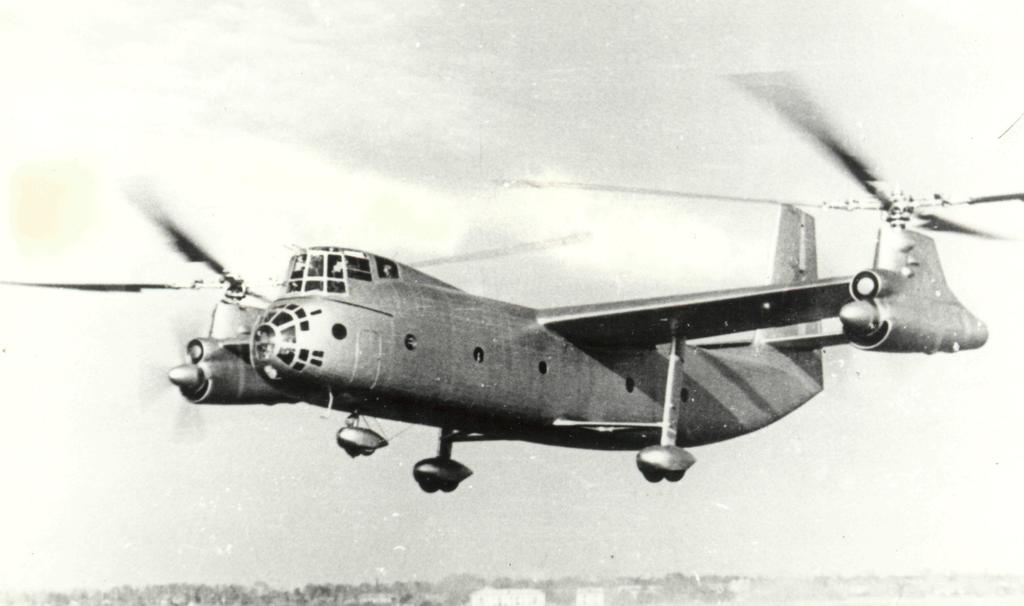

At its core, the Kamov Ka-22 was designed as a rotorcraft with the unique capability of transitioning between vertical and horizontal flight modes. This hybrid design featured two large rotors mounted on the ends of fixed wings. The rotors, functioning like those of a helicopter, provided the vertical lift necessary for takeoff and landing. Once airborne, the Ka-22 could transition to horizontal flight like an aeroplane, with the rotors acting as propellers.
Read More: North American X-15 – The 4000 MPH Rocket Plane
The rotor system was one of the most complex and innovative aspects of the Ka-22. Unlike traditional helicopters, the Ka-22’s rotors did not change their pitch to control movement. Instead, they relied on varying rotor speed for control, a much more complicated and less responsive system.
This design choice was primarily due to the dual function of the rotors, which needed to operate efficiently both as helicopter rotors and as aeroplane propellers.
Another notable feature of the Ka-22 was its fuselage, which was relatively large to accommodate significant payload capacities. This was a major selling point for its intended roles, which included troop transport and heavy lifting. However, the size and design of the fuselage added to the aerodynamic challenges during flight transitions.
Operational Challenges
The innovative design of the Ka-22 brought with it a host of operational challenges, predominantly stemming from its hybrid nature. The most significant of these was managing the transition between helicopter mode and aeroplane mode.
This transition was a delicate process that required precise control and timing. The change in aerodynamic forces during this transition phase was profound, and the aircraft had to be meticulously balanced to maintain stability and control.
Synchronising the rotors was another critical challenge. The rotors needed to operate in perfect harmony to ensure stable flight, particularly during the transition phases. Any imbalance or synchronization error could lead to catastrophic failure, a risk that was unfortunately realised in several test flights.
Moreover, the Ka-22’s complexity meant that it required highly skilled pilots who could manage its unique control systems. The aircraft’s handling characteristics varied significantly between its helicopter and aeroplane modes, requiring pilots to adapt quickly and efficiently to these changes during flight.
Read More: Swamp Ghost: Pacific B-17 Preserved by a Swamp
Reliability was another concern. The Ka-22’s complex mechanics were prone to maintenance issues, and the technology of the time was not always up to the task of ensuring consistent performance. This reliability issue was a significant factor in the limited production and deployment of the aircraft.
Achievements
One of the most significant achievements of the Ka-22 was its performance in terms of speed, which was remarkable for a rotorcraft of its time. The aircraft set several world records, particularly in speed categories.
In 1961, the Ka-22 established a rotorcraft speed record by reaching a speed of 356.3 kilometres per hour (221.4 mph) over a 500 km closed circuit. This achievement was a testament to the innovative design of the Ka-22, which allowed it to surpass the speeds typically achieved by conventional helicopters.
Another area where the Ka-22 demonstrated its capabilities was in payload capacity and range. The aircraft was designed to carry substantial loads, and its performance in tests showed that it could fulfil a variety of roles, from troop transport to carrying heavy equipment.
Its ability to take off and land vertically, combined with the speed and range of a fixed-wing aircraft, made it a versatile platform for potential military and civilian applications.
The Ka-22 also proved the feasibility of combining rotor and fixed-wing technologies in a single aircraft. This was a significant technological milestone, as it opened up new possibilities for aircraft design.
The concept of a rotorcraft capable of high-speed horizontal flight was revolutionary at the time and paved the way for future developments in VTOL (Vertical Take-Off and Landing) and tiltrotor aircraft.
Read More: The S-3 Viking – The Submarine Hunter
Influence
The Kamov Ka-22’s legacy lies in its ambitious attempt to blend helicopter and aeroplane technologies. While it did not enter mass production or see widespread use, its innovative design influenced future aircraft development.
The lessons learned from the Ka-22 contributed to the evolution of tiltrotor aircraft, which successfully implemented the concept of combining vertical lift with aeroplane-like speed and range.
Safety
The safety record of the Ka-22 was marred by several accidents, some of which were fatal. These incidents were attributed to various factors inherent in its complex and innovative design. The most significant safety challenges stemmed from the aircraft’s hybrid nature, which necessitated a delicate balance between helicopter and aeroplane flight characteristics.
The transition between vertical and horizontal flight modes was particularly perilous. This phase of flight required precise control and balance, as the aerodynamic forces acting on the aircraft changed significantly. Any miscalculation or mechanical failure during this transition could lead to instability and potential loss of control.
Read More: The Screaming McDonnell F2H Banshee
On top of this, any discrepancy in rotor speed or coordination could lead to severe vibrations, loss of lift, or uncontrolled movements. The technology of the time struggled to ensure consistent rotor performance, exacerbating the safety risks.
The Ka-22 Wasn’t the Most Reliable
Reliability was another significant challenge for the Ka-22. The aircraft’s complex mechanics and pioneering technology led to maintenance difficulties and operational uncertainties. The Ka-22’s systems, particularly those involved in controlling and synchronising the rotors, were prone to malfunctions, which sometimes resulted in serious accidents.
The challenges in ensuring reliable operation were compounded by the limitations of the era’s technology. The advanced concepts implemented in the Ka-22 were ahead of their time, and the available materials, engineering practices, and technological solutions were not always sufficient to meet the demands of such an innovative aircraft.
